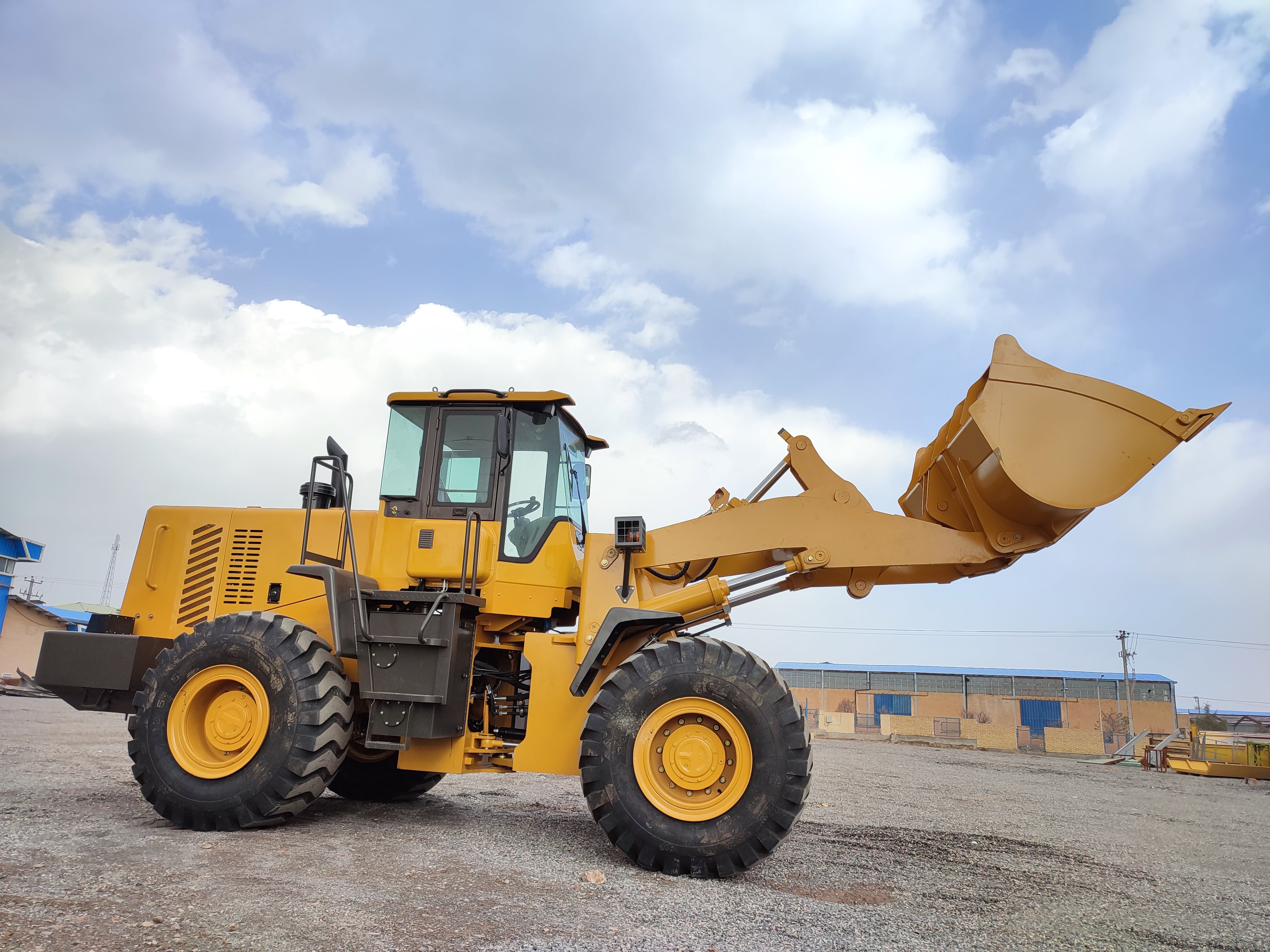

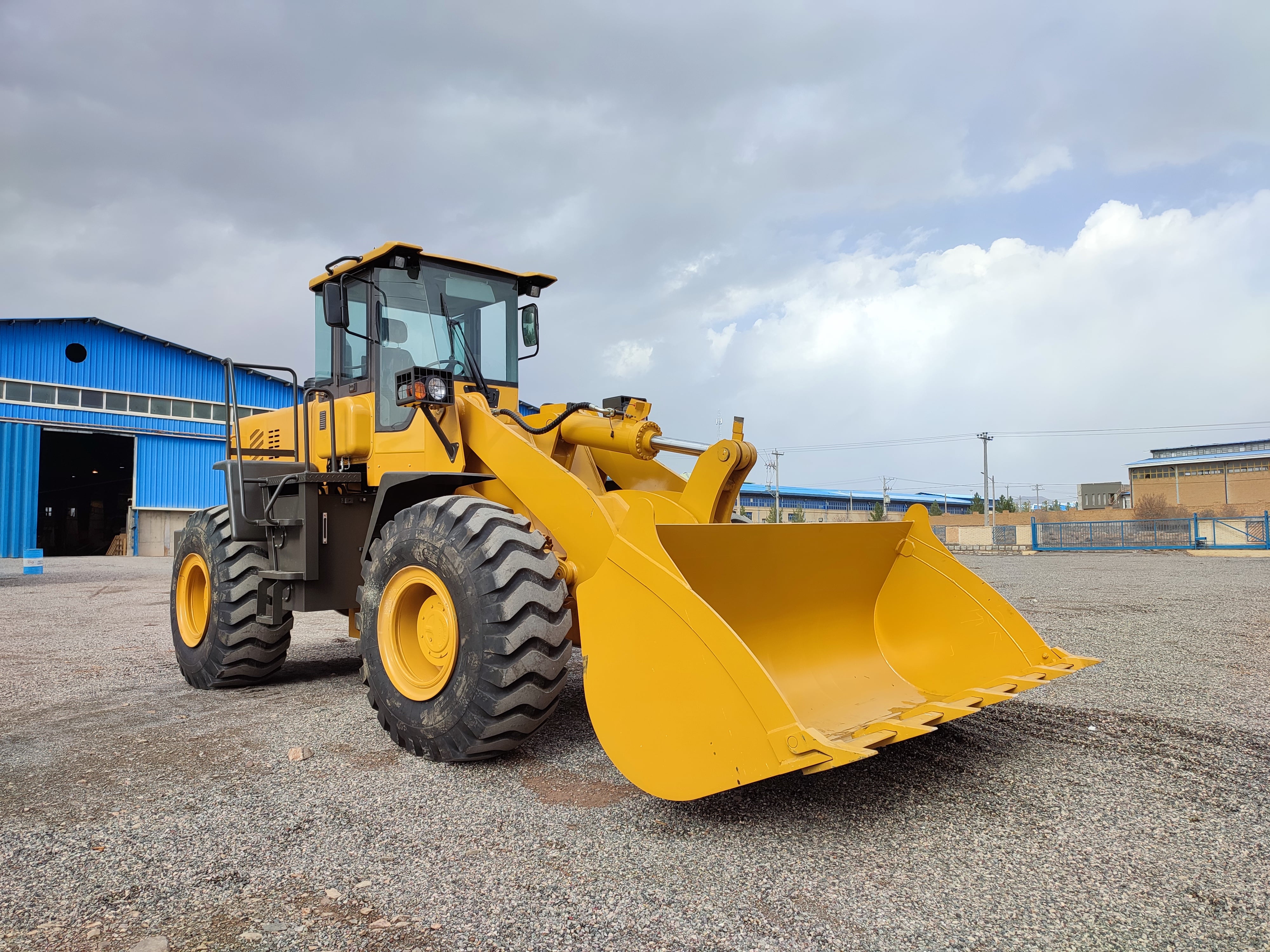

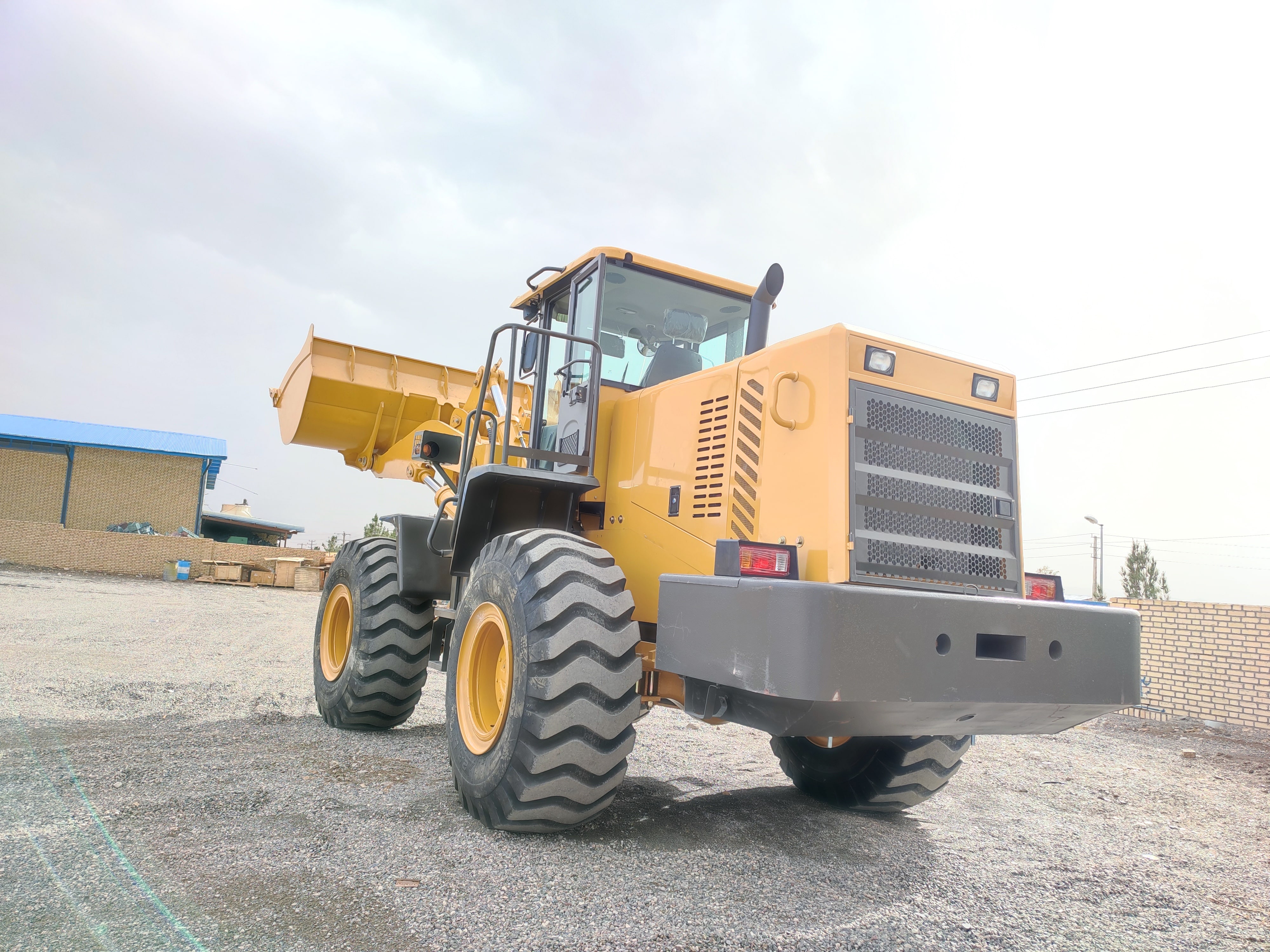

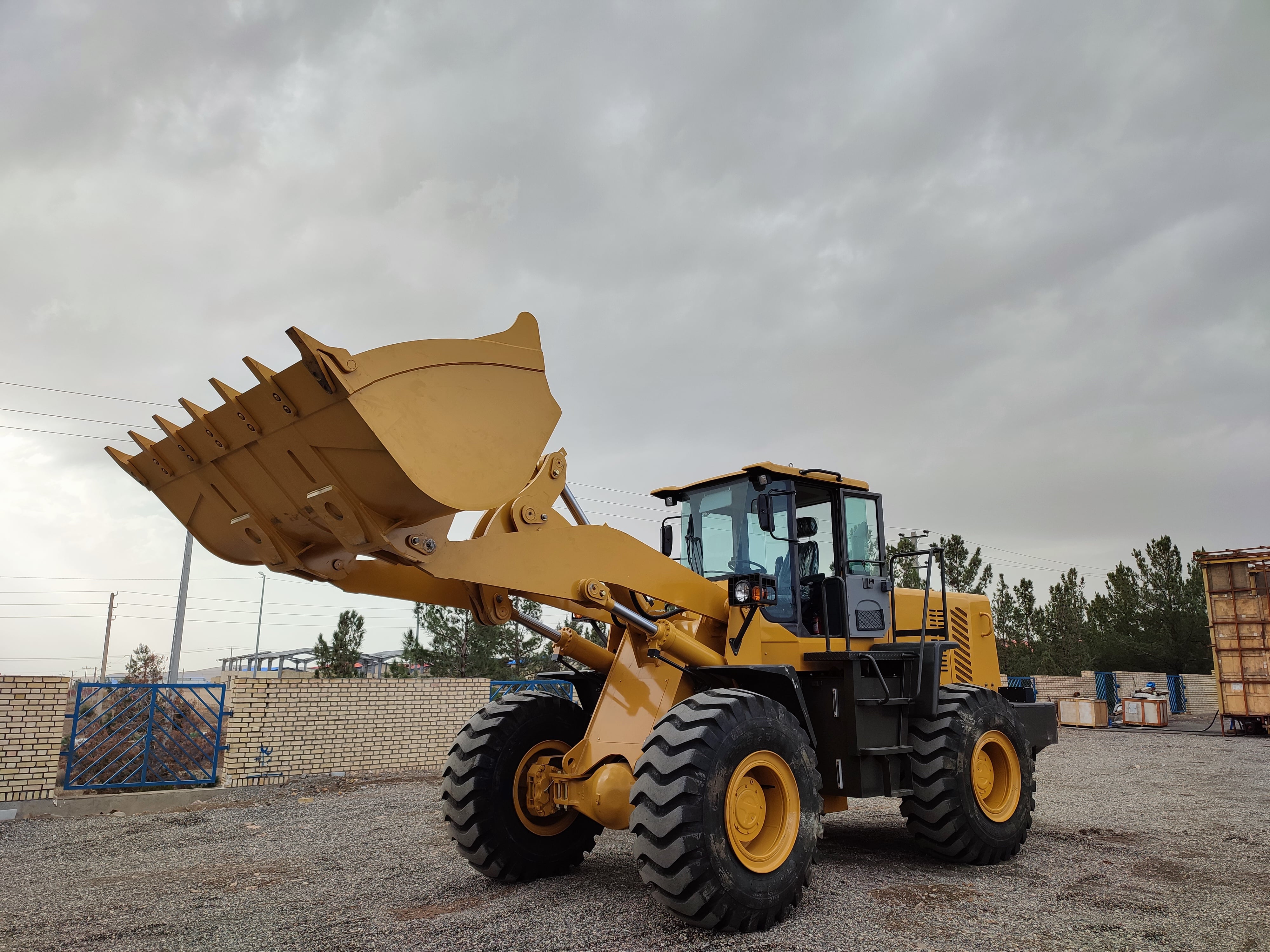

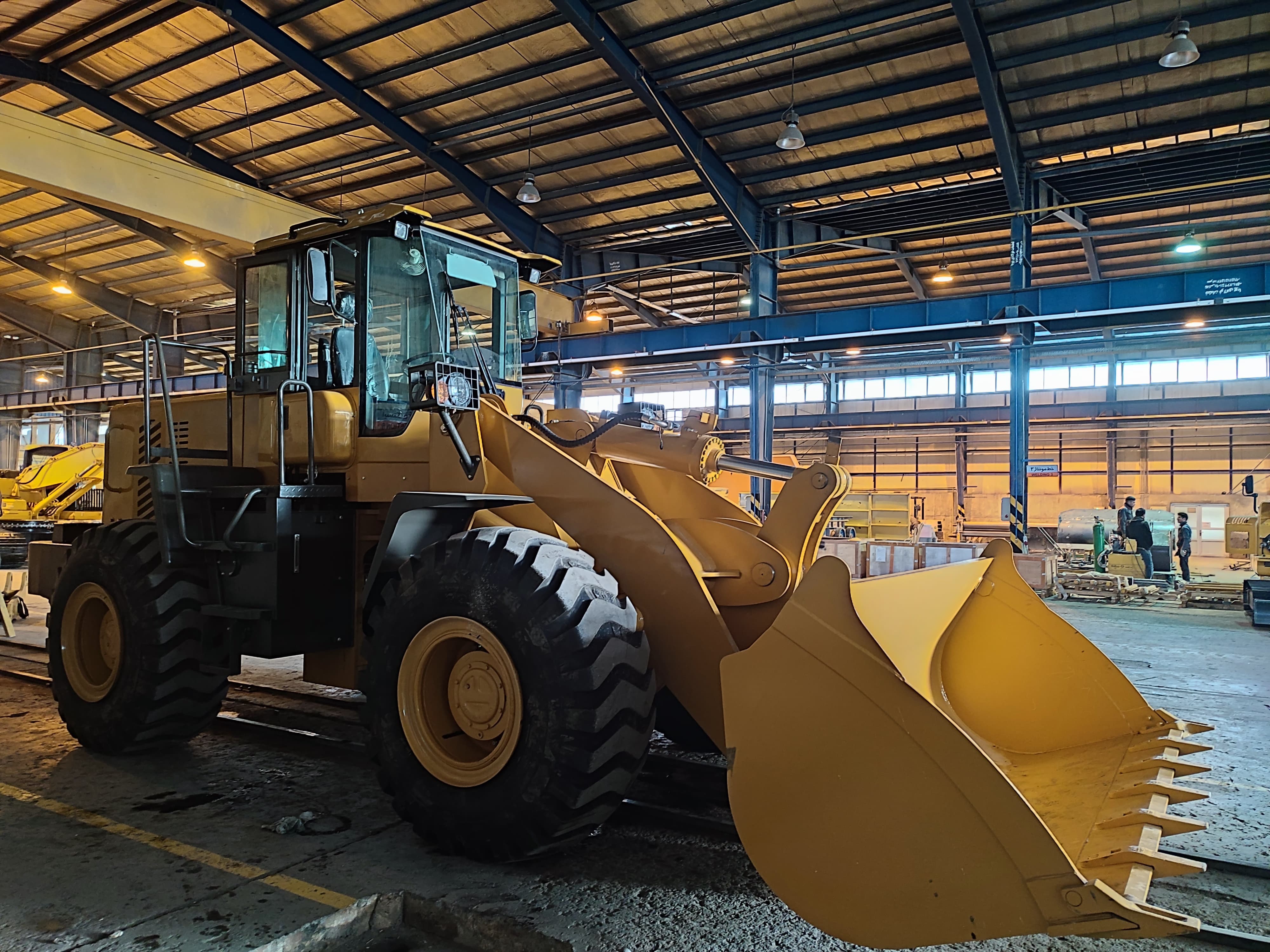

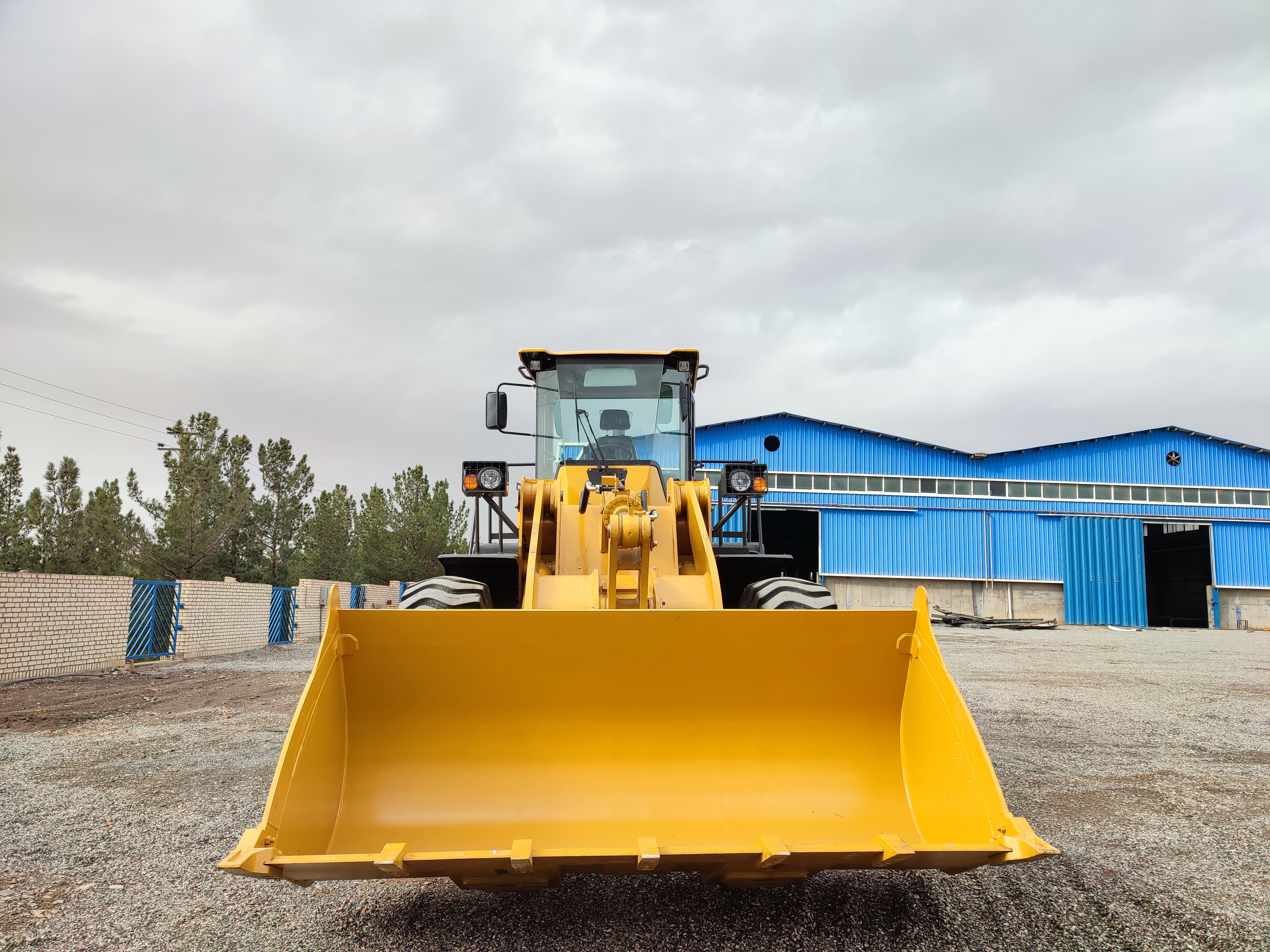

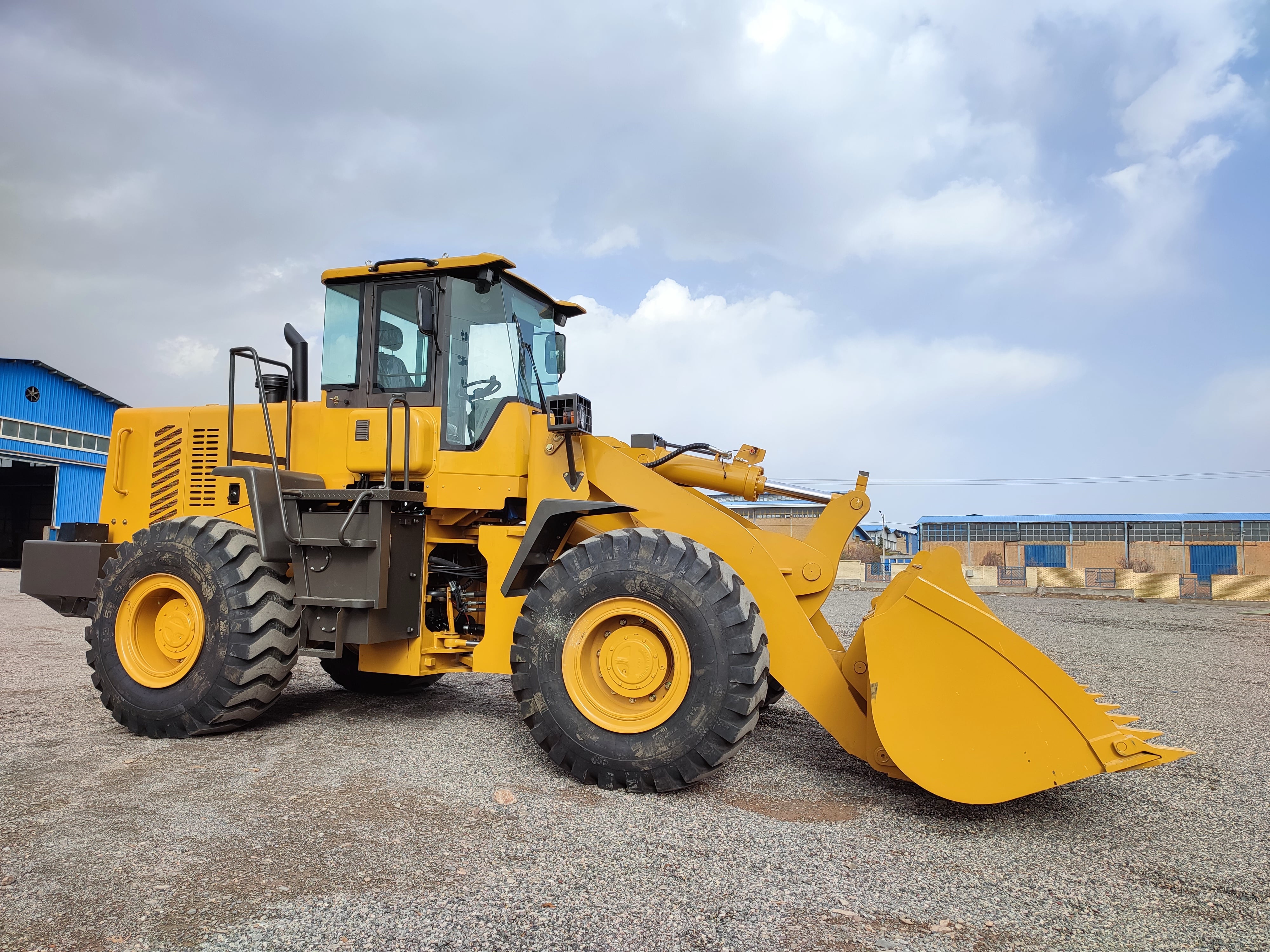

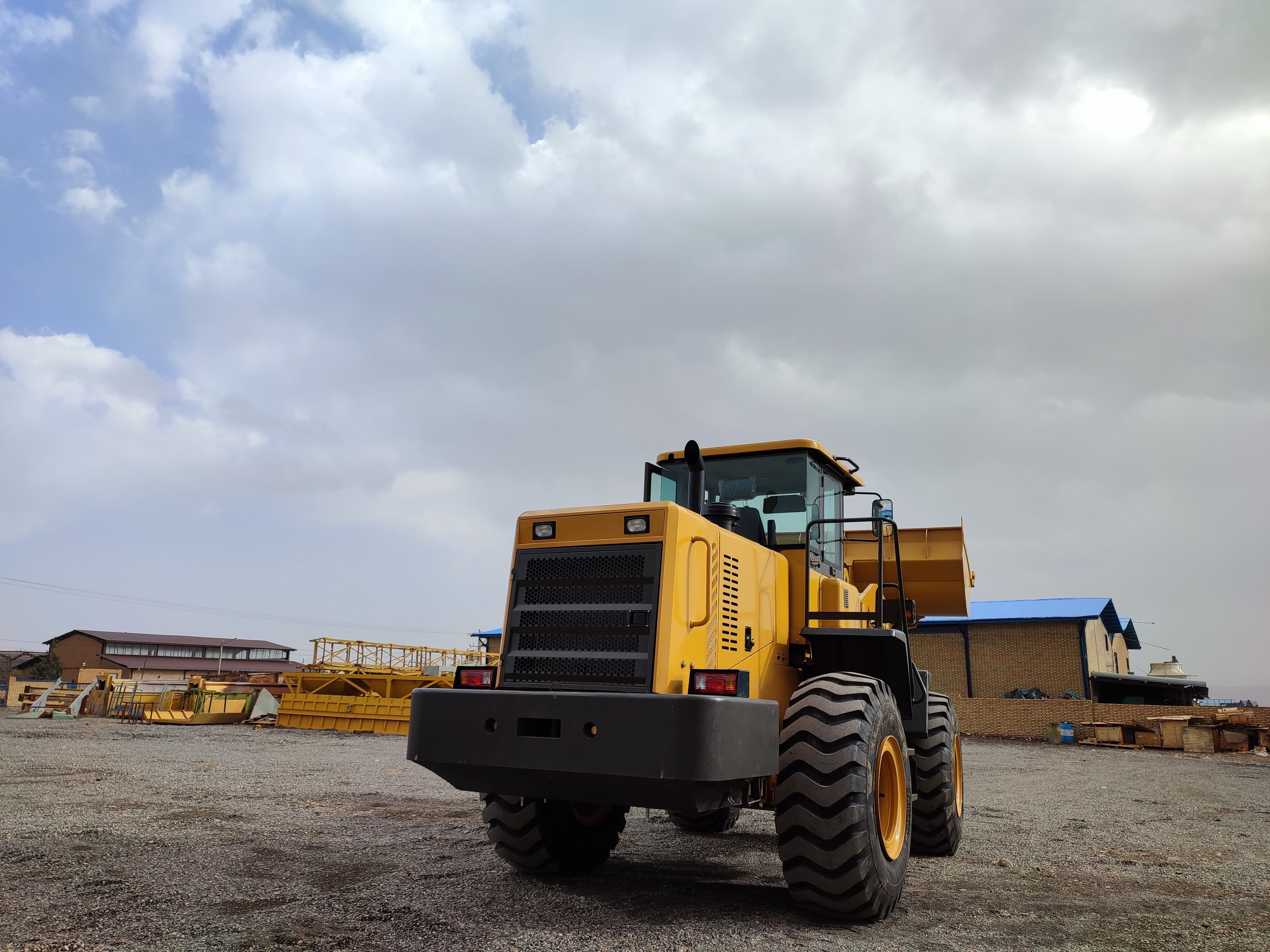

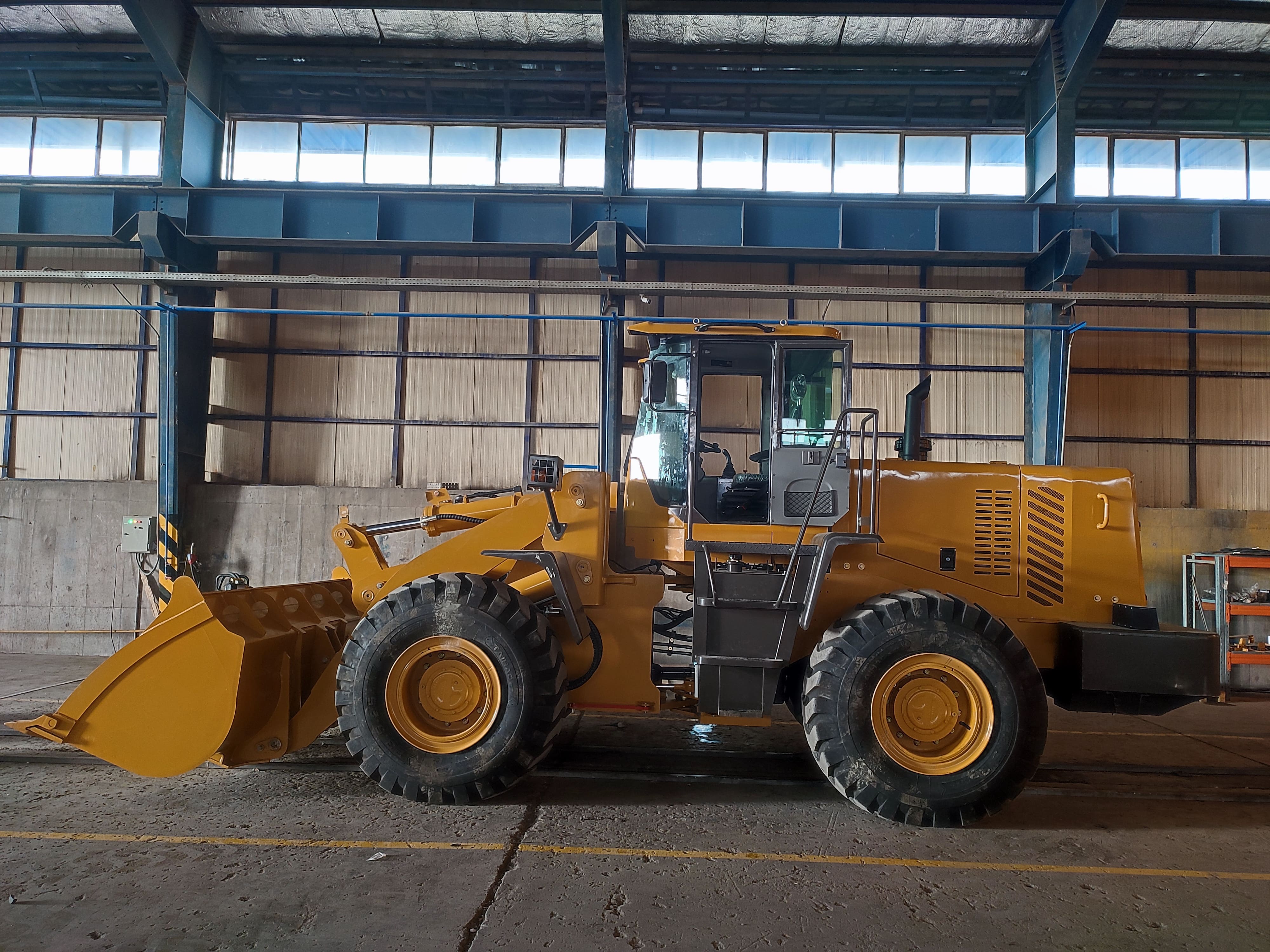

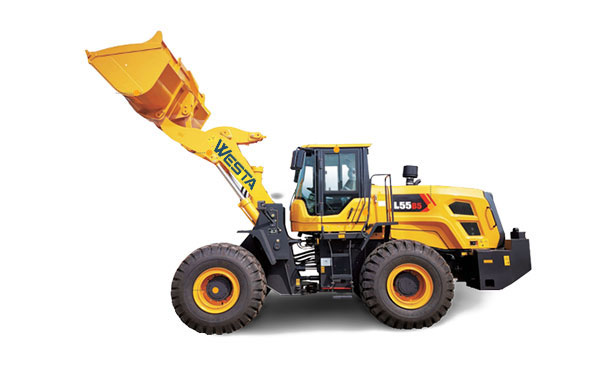

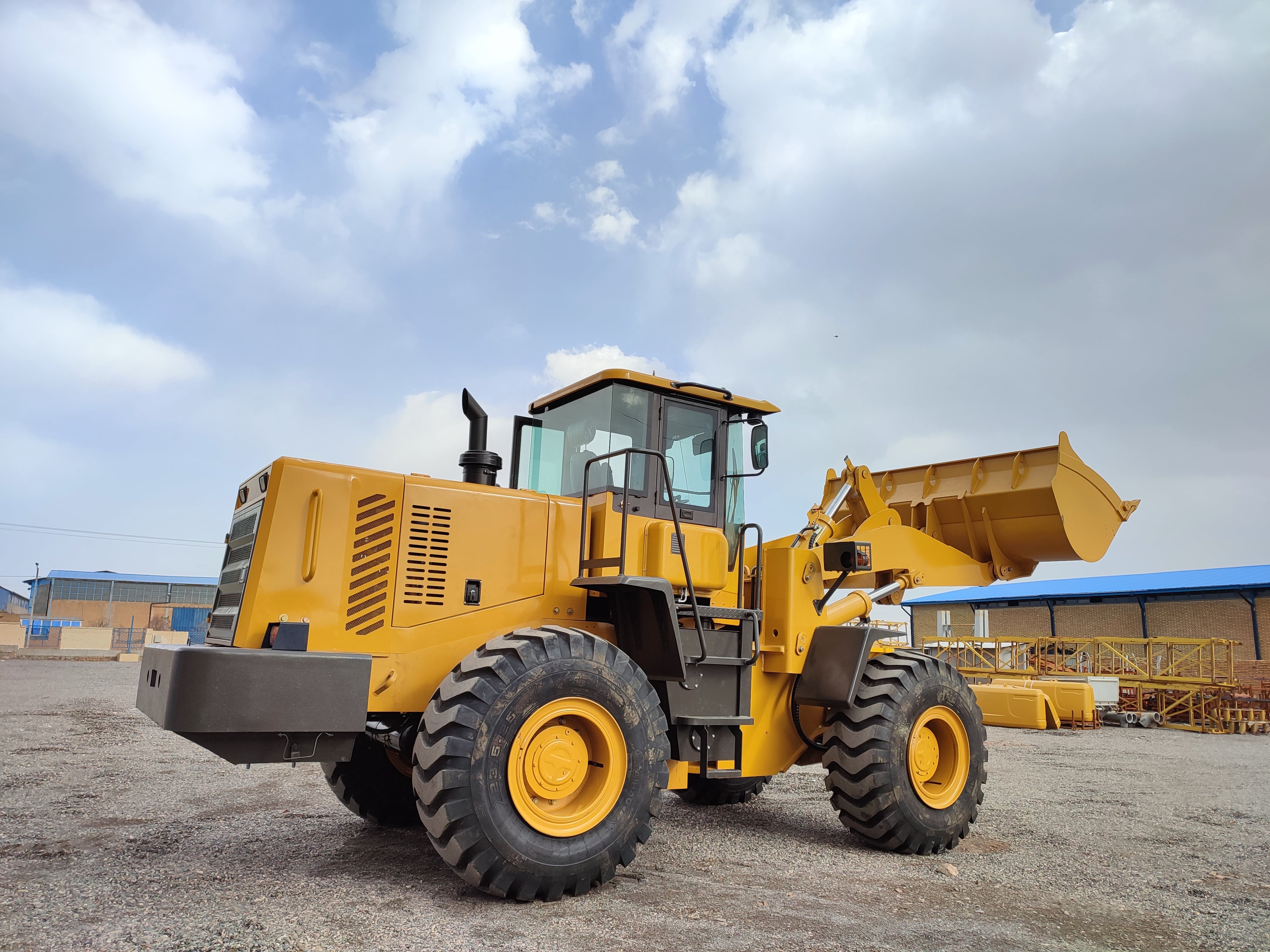

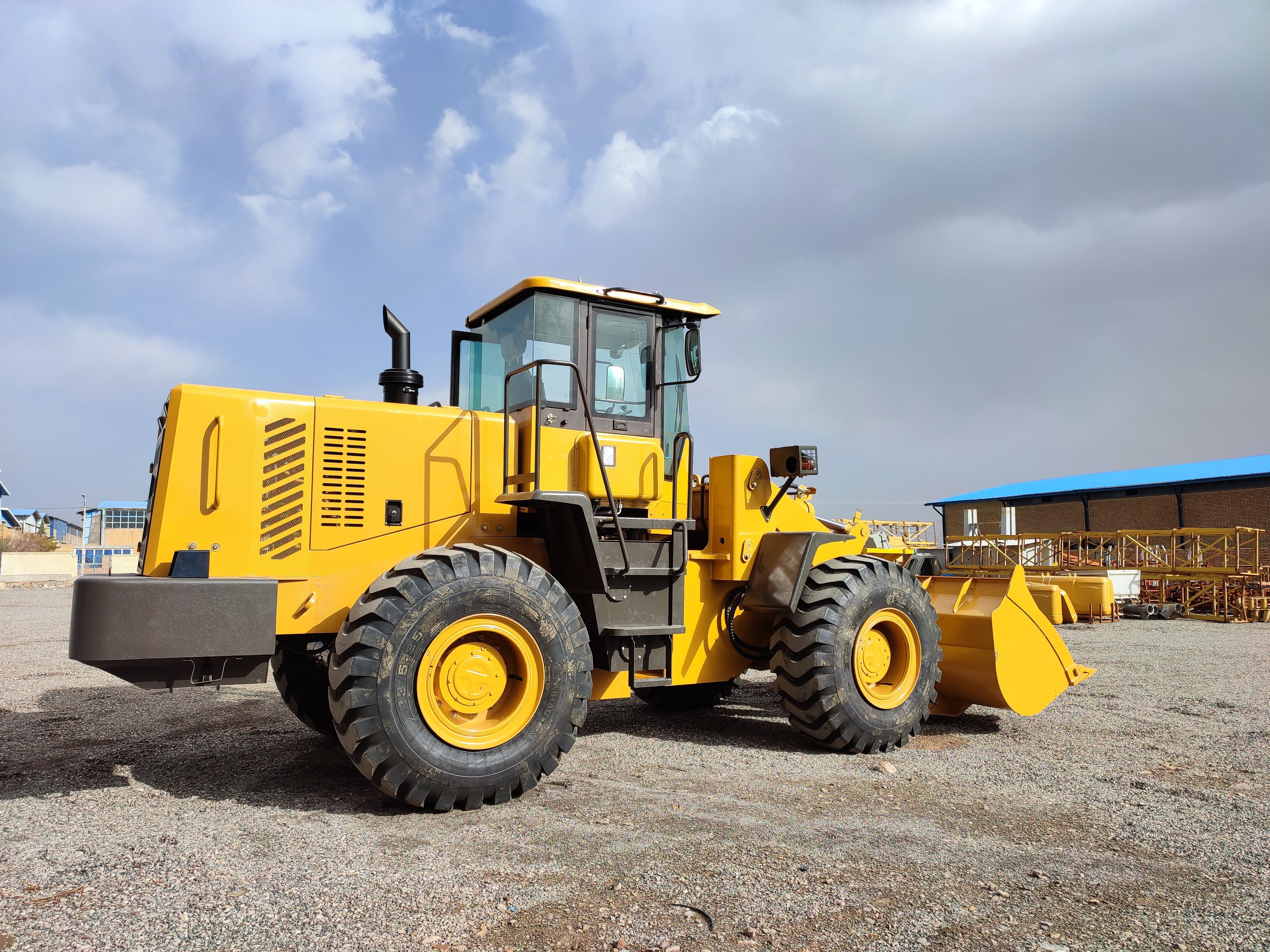

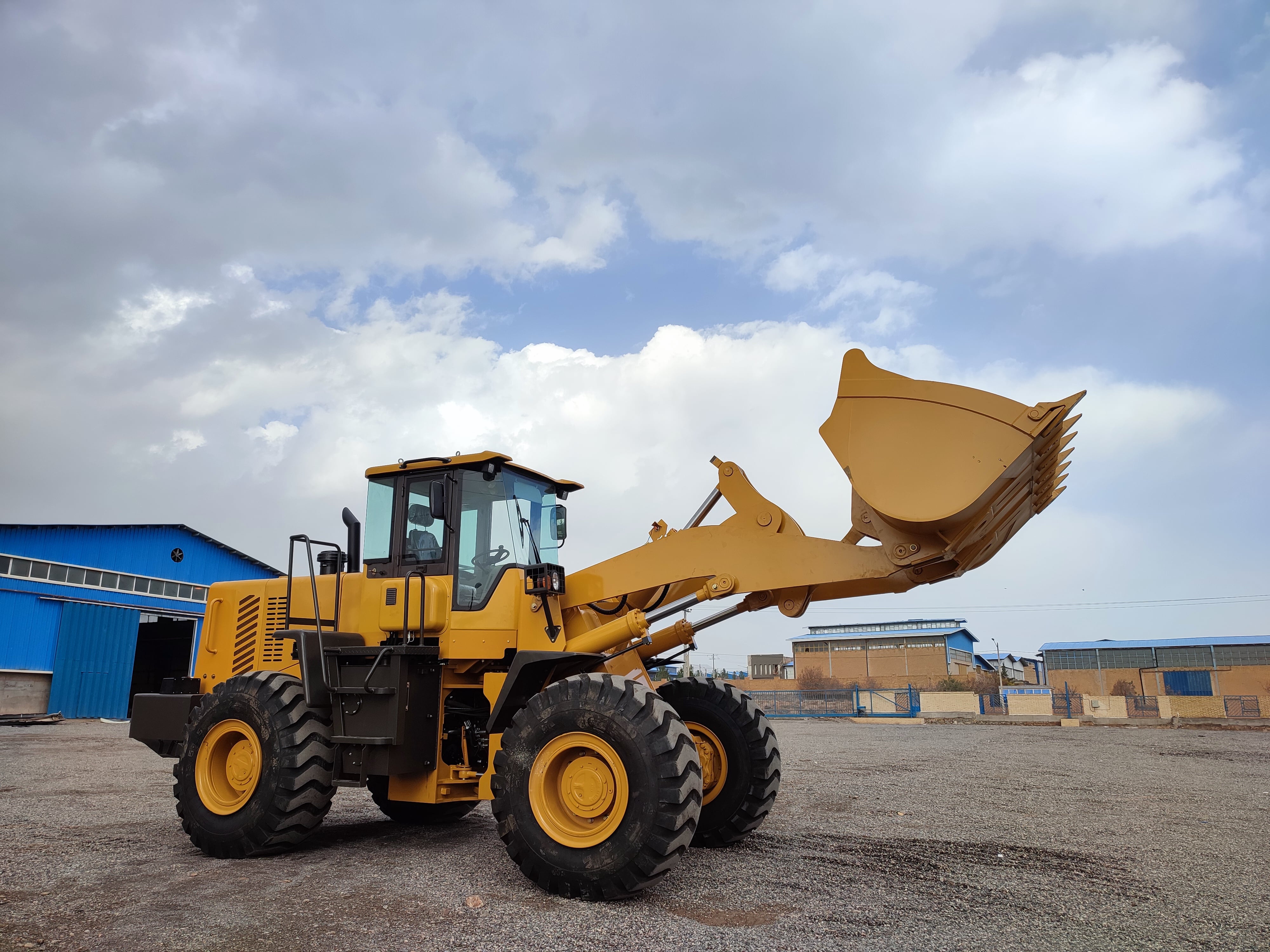

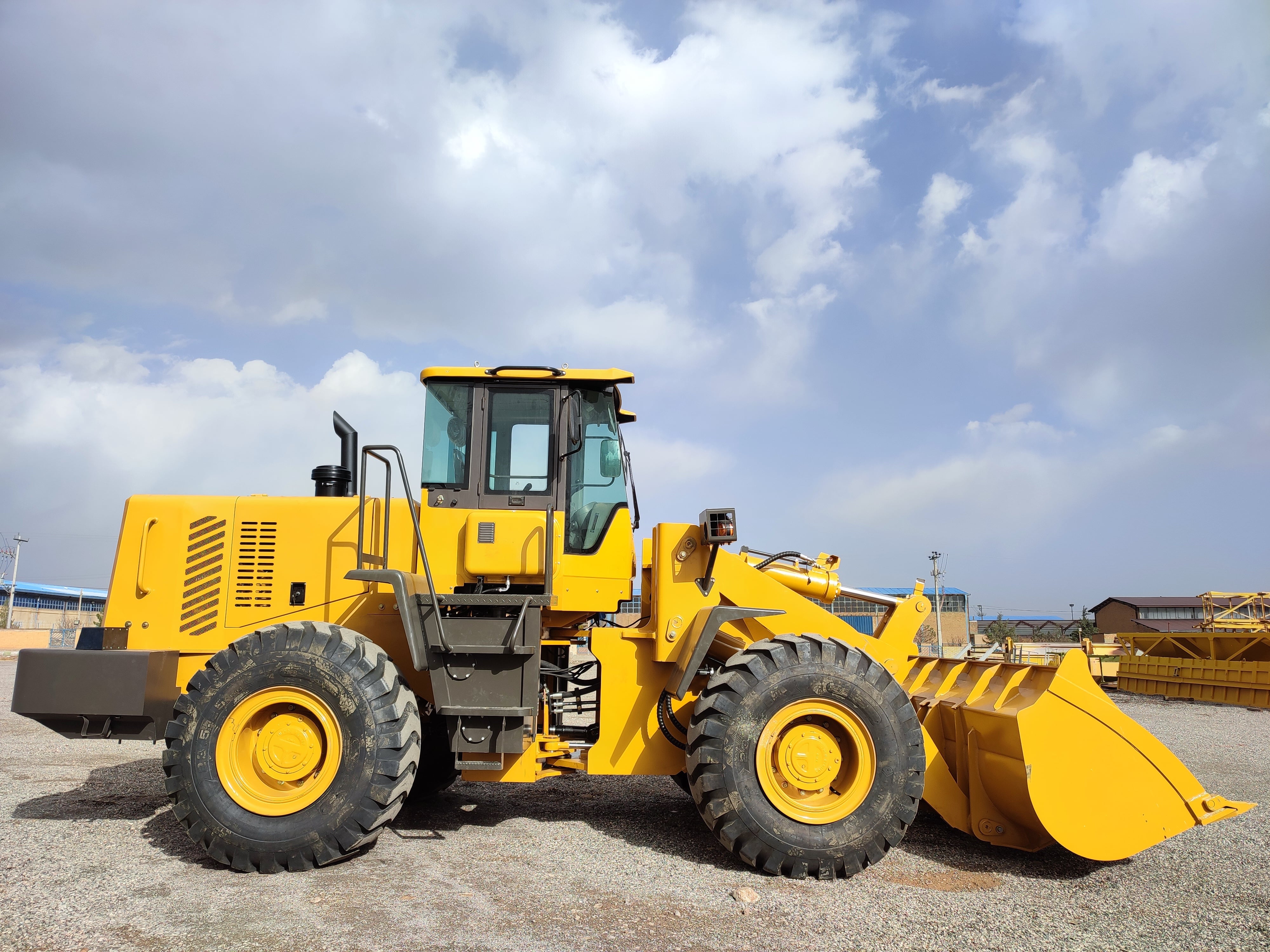

WL55-B5
Wheel Loader
Rated bucket capacity
3 m³
Operating Weight
16400 Kg

Features

High operating efficiency

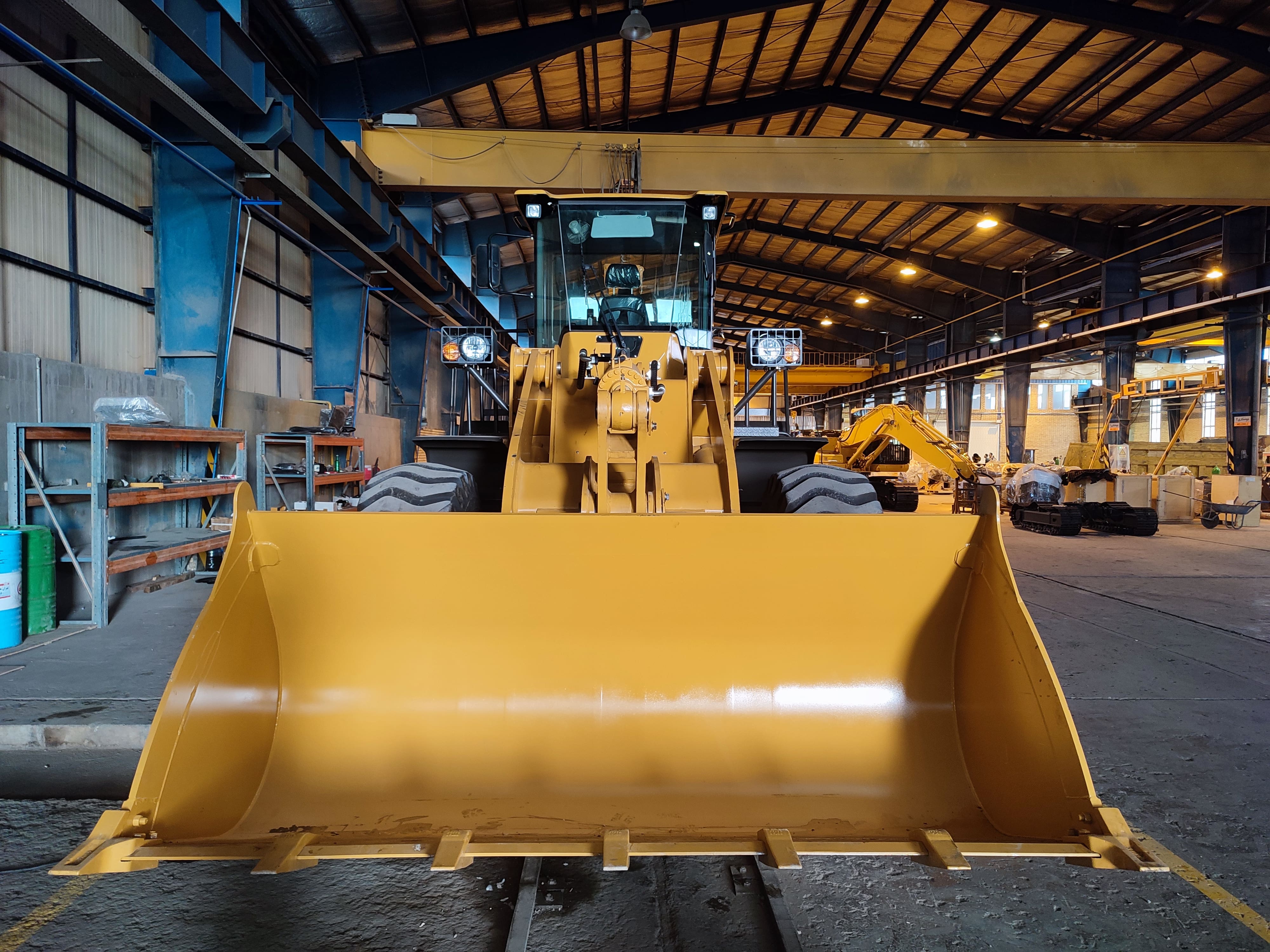

●Standard 3.0m3 GP bucket.
●Optional: heavy duty bucket or light material bucket.
●Optional: coupler, side-dump bucket, forks, snow blade or wood clamp.

Reliable Structure

●The front and rear frames with reinforced structure, high strength and long service life; the wheelbase up to 3250mm,moving with load more stable.
●CAE analysis of structural parts; high-ficiency Z-bar linkage system; fast movement, large digging force.

New Industrial Design

● Streamlined design, attractive appearance.
● A spacious, safe, quiet operator environment featuring ergonomic controls.
●Optional with Climate control system.

PARAMETER

Operating weight(kg)
Maximum dumping height (mm)
Dumping reach (mm)
Maximum breakout force (kN)
Total cycle time (s)
Engine model
Rated power/rated speed (kW/rpm)
Overall dimensions of machine (mm)
Forward speed (km/h)
Reversing speed (km/h)
Wheelbase (mm)
Fuel tank (L)
Rated bucket capacity (m³)
Rated loading capacity (t)
16400
3045 (Extended boom)3410 (Long Boom)
1115 (Extended boom)985 (Long Boom)
≥170
10.5
WD10G220E23
162/2000
8220*3066*3450
F1:0-12,F2:0-40
R1:0-15
3250
300
3
5
